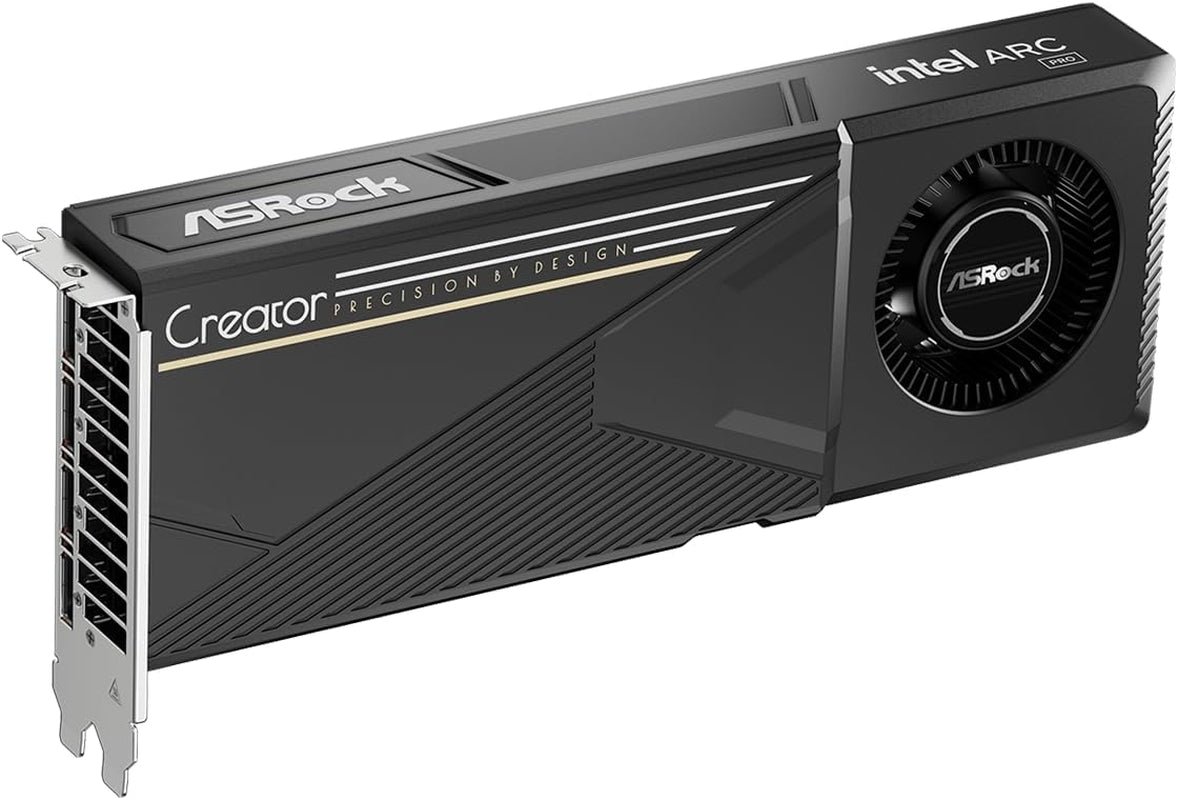

Accelerate your professional workflows with the ASRock Intel Arc Pro B60 Creator 24GB Workstation Graphics Card. Built on the Intel Xe2-HPG architecture, this card features 20 Xe cores and 160 XMX engines, designed for AI inference, 3D rendering, and generative design workloads. With 24GB of GDDR6 memory on a 192-bit bus, it provides the memory capacity and bandwidth needed for large AI models and complex datasets.
Key Features
-
24GB GDDR6 on 192-Bit Bus: Massive 24GB memory with 456 GB/s bandwidth – ideal for LLMs, AI inference, 3D rendering, and generative design .
-
Intel Xe2-HPG Architecture: Built on Intel’s next-gen architecture with 20 Xe cores and 160 XMX engines for AI acceleration (197 INT8 TOPS).
-
PCIe 5.0 Support: PCI Express 5.0 x16 interface for maximum bandwidth with the latest workstation platforms .
-
Twin Media Transcoders: Dual-encode engines support AV1, H.264, and HEVC – export videos quickly in high-res formats .
-
Blower-Style Cooling: Single blower fan with nickel-plated copper base and ultra-fit heatpipe. 0dB Silent stops fan at low loads .
-
ISV Certified & Professional Drivers: Validated for AI, design, engineering, and manufacturing software with workstation-optimized drivers .
-
4x DisplayPort 2.1 Outputs: Connect up to four high-resolution 8K displays simultaneously for expansive multi-monitor workflows .
-
Scalable Multi-GPU Support: Optimized for Linux multi-GPU LLM deployments, allowing you to scale AI performance across multiple cards .
Specifications
| Specification | Details |
|---|---|
| Brand | ASRock |
| Model Name | B60 CT 24G |
| Model Number (MPN) | 90-GA60ZZ-00UANZ |
| GTIN / UPC | 4711140876542 |
| Graphics Coprocessor | Intel Arc Pro B60 |
| GPU Architecture | Intel Xe2-HPG |
| Xe Cores | 20 |
| XMX Engines | 160 |
| AI Performance | 197 INT8 TOPS |
| Graphics RAM Size | 24 GB |
| Graphics RAM Type | GDDR6 |
| Memory Interface | 192-bit |
| Memory Speed | 19 Gbps |
| Memory Bandwidth | 456 GB/s |
| GPU Clock Speed | 2400 MHz |
| Video Output Interface | 4 x DisplayPort 2.1 |
| Maximum Display Support | 4 |
| Graphics Card Interface | PCI Express 5.0 x16 |
| Number of Fans | 1 (Blower) |
| Slot Width | 2-Slot |
| Display Maximum Resolution | 7680 x 4320 (8K UHD) |
| Power Connectors | 1 x 8-pin |
| TDP | 200W |
| Item Dimensions | 271 x 112 x 39 mm |
| Warranty | 2-Year Manufacturer Warranty |
