Experience next-generation 1440p gaming with the ASRock Intel Arc B580 Challenger 12GB OC. Powered by the Intel Xe2-HPG architecture with 20 Xe cores and 160 XMX engines for AI acceleration, this card delivers exceptional performance for 1080p and 1440p gaming. The dual-fan design with Striped Axial Fans ensures optimized cooling efficiency while 0dB Silent Cooling stops the fans completely at low temperatures for silent operation .
Why Choose the ASRock Challenger B580?
The Challenger series is designed for gamers who want powerful performance at an accessible price point. The Intel Arc B580 GPU features Xe Super Sampling 2 (XeSS 2) for AI-enhanced upscaling, and the 12GB of GDDR6 memory on a 192-bit bus provides 456 GB/s of bandwidth for modern game textures . The stylish metal backplate enhances both cooling and structural rigidity, while Super Alloy Graphics Card components ensure durability .
Key Features
-
Intel Xe2-HPG Architecture & XMX Engines – Powered by Intel Arc B580 GPU with 160 XMX engines for AI acceleration; supports Xe Super Sampling 2 (XeSS 2) for enhanced performance .
-
High-Performance Engine Clock – GPU clock of 2740 MHz and 19 Gbps memory clock for fast, responsive gaming at 1080p and 1440p .
-
12GB GDDR6 on 192-Bit Bus – 12GB memory at 19 Gbps provides 456 GB/s bandwidth for modern game textures and creative applications .
-
PCIe 4.0 Support – PCIe 4.0 x8 interface with one 8-pin power connector for easy installation .
-

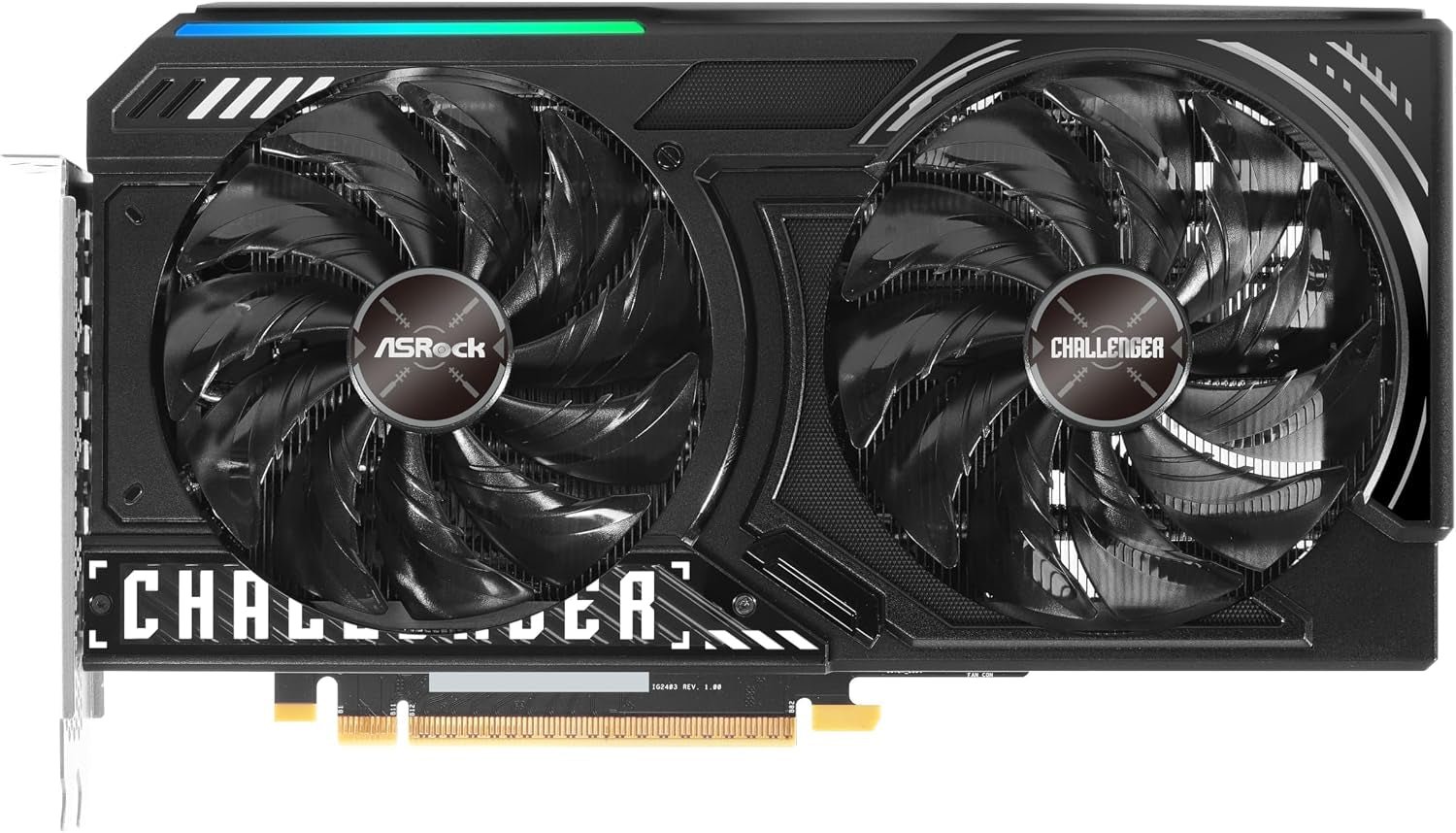

Dual-Fan Cooling with 0dB Silent – Dual fans with Striped Axial Fan design; 0dB Silent stops fans at low temps for silent operation .
-

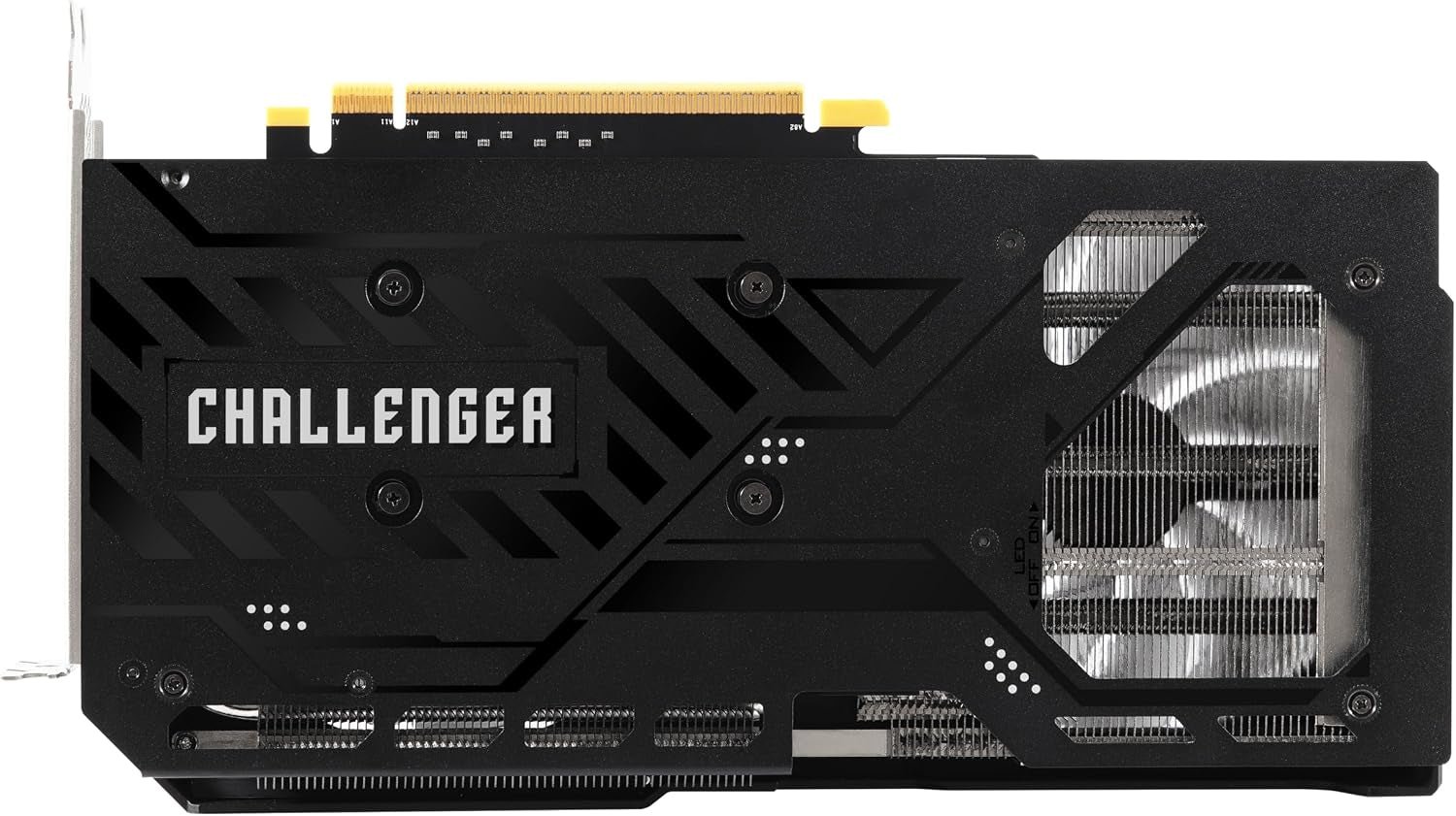

Stylish Metal Backplate – Metal backplate with thermal pad enhances cooling and structural rigidity .
-

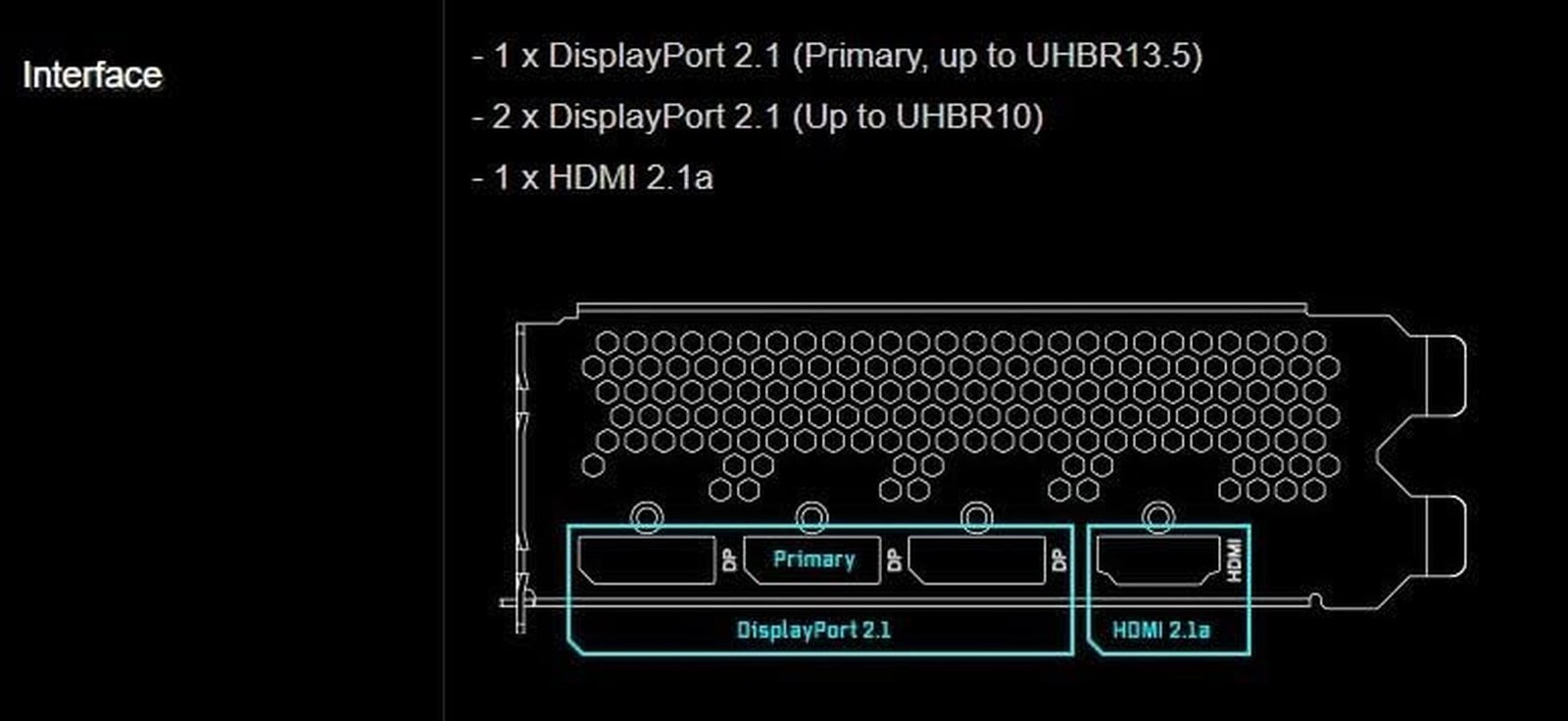

Multi-Display Connectivity – 3x DisplayPort 2.1 and 1x HDMI 2.1a outputs; supports up to four displays with 8K resolution and AV1 encode .
Specifications
| Specification | Details |
|---|---|
| Brand | ASRock |
| Model Name | B580 CL 12GO |
| Model Number (MPN) | 90-GA5LZZ-00UANF |
| GTIN / UPC | 4711581490031 |
| Graphics Coprocessor | Intel Arc B580 |
| GPU Architecture | Intel Xe2-HPG (Battlemage) |
| Xe Cores | 20 |
| XMX Engines | 160 |
| Render Slices | 5 |
| Ray Tracing Units | 20 |
| Shader Units | 2560 |
| Graphics RAM Size | 12 GB |
| Graphics RAM Type | GDDR6 |
| Memory Interface | 192-bit |
| Memory Clock Speed | 19 Gbps |
| Memory Bandwidth | 456 GB/s |
| GPU Clock Speed (OC) | 2740 MHz |
| GPU Base Clock | 2670 MHz (Reference) |
| Video Output Interface | 3x DisplayPort 2.1, 1x HDMI 2.1a |
| Maximum Display Support | 4 |
| Graphics Card Interface | PCI Express 4.0 x8 |
| Number of Fans | 2 (Striped Axial) |
| Slot Width | 2-Slot |
| Display Maximum Resolution | 7680 x 4320 |
| Power Connectors | 1 x 8-pin |
| Recommended PSU | 600W |
| TDP | 190W |

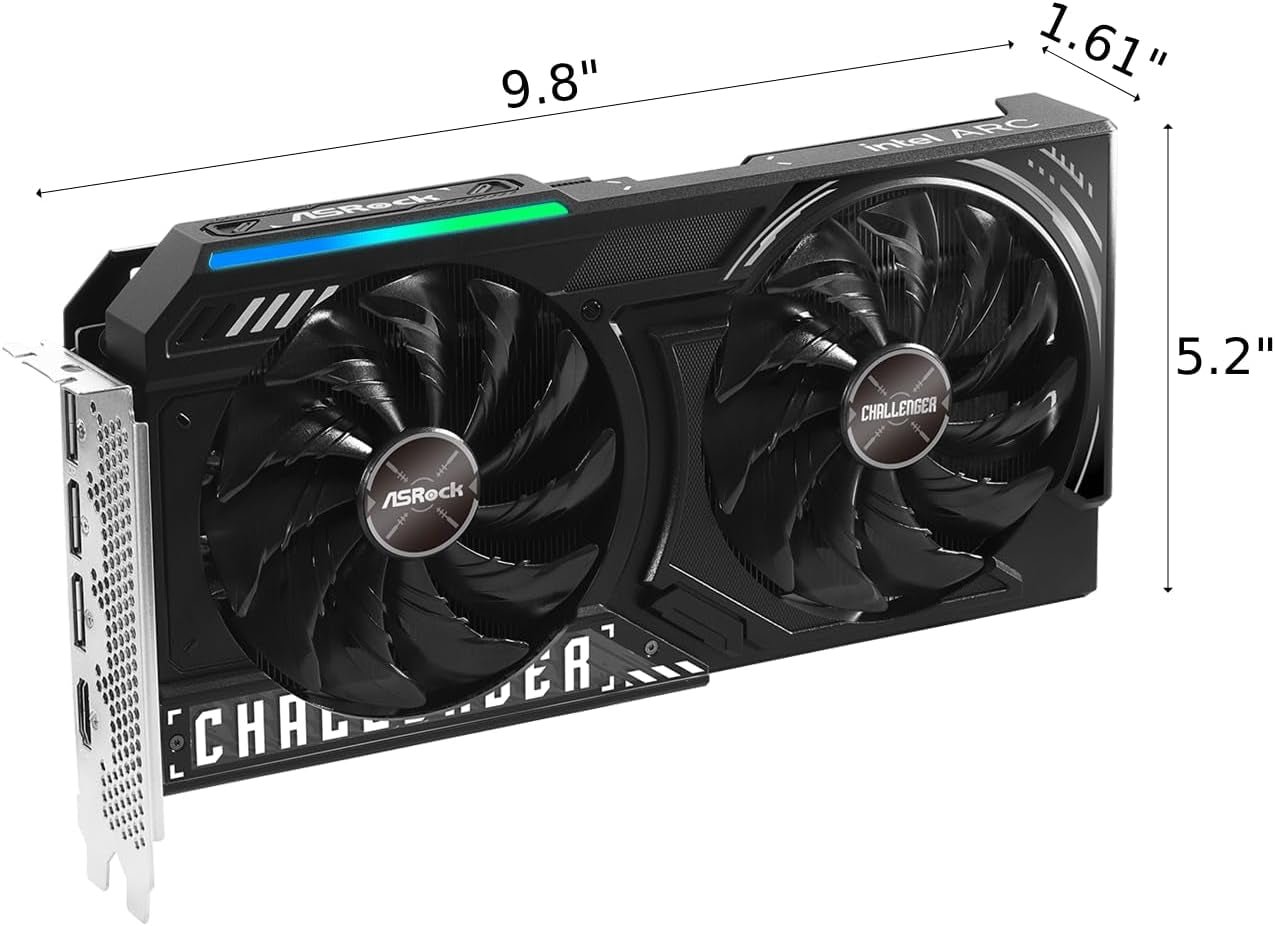

| Item Dimensions | 249mm length |
| Warranty | 2-Year Manufacturer, 90 Days Refurbished |
